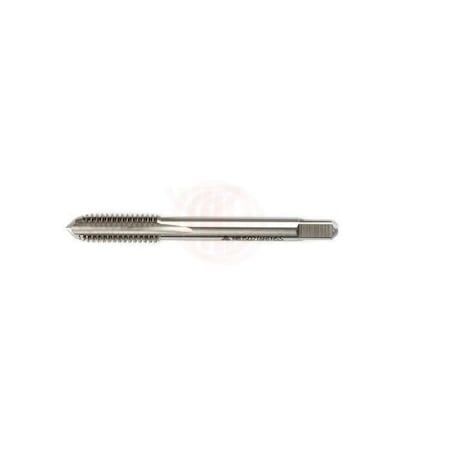

Makina Takım B00104040400 Hss Dın 352 Normal Vidalı Kılavuz - So
0,00 TL
Kategori
Marka
Stok Kodu
593009890
Fiyat
0,00 USD
Makina Takım B00104040400 Hss Dın 352 Normal Vidalı Kılavuz - So en uygun fiyatlar ile toptanhirdavat.com'da. 'ÖZEL FİYAT AL' butonu ile Teklif Sepetine ekleyerek fiyat teklifi isteyebilirsiniz.
Ürün Kodu d1 (mm) P adım L1 (mm) L2 (mm) d2 (mm) k (h12) (mm) B00104040200 M 2 0.4 36 8 2,8 2,1 B00104040250 M 2,5 0.45 40 9 2,8 2,1 B00104040300 M 3 0.5 40 11 3,5 2,7 B00104040350 M 3,5 0.6 45 13 4,0 3,0 B00104040400 M 4 0.7 45 13 4,5 3,4 B00104040500 M 5 0.8 50 16 6,0 4,9 B00104040600 M 6 1 56 19 6,0 4,9 B00104040700 M 7 1 56 19 6,0 4,9 B00104040800 M 8 1.25 63 22 6,0 4,9 B00104040900 M 9 1.25 63 22 7,0 5,5 B00104041000 M 10 1.5 70 24 7,0 5,5 B00104041200 M 12 1.75 75 29 9,0 7,0 B00104041400 M 14 2 80 30 11,0 9,0 B00104041600 M 16 2 80 32 12,0 9,0 B00104041800 M 18 2.5 95 40 14,0 11,0 B00104042000 M 20 2.5 95 34 16,0 12,0 B00104042200 M 22 2.5 100 34 18,0 14,5 B00104042400 M 24 3 110 38 18,0 14,5 B00104042600 M26 3 110 38 20 16 B00104042700 M27 3 110 38 20 16,0 B00104042800 M28 3 110 38 20 16 B00104043000 M 30 3.5 125 45 22,0 18,0 B00104043300 M 33 3.5 125 50 25,0 20,0 B00104043600 M 36 4 150 56 28,0 22,0 B00104043900 M39 4 150 60 32 24 B00104044200 M42 4.5 150 60 32 24 B00104044500 M45 4.5 160 65 36 29 B00104044800 M48 5 180 70 36 29 B00104045200 M52 5 180 70 40 32 B00104045600 M56 5.5 200 70 40 35 Bu İlan ENTEGRA Entegrasyon Sistemleri ile Listelenmiştir
Ürün Kodu d1 (mm) P adım L1 (mm) L2 (mm) d2 (mm) k (h12) (mm) B00104040200 M 2 0.4 36 8 2,8 2,1 B00104040250 M 2,5 0.45 40 9 2,8 2,1 B00104040300 M 3 0.5 40 11 3,5 2,7 B00104040350 M 3,5 0.6 45 13 4,0 3,0 B00104040400 M 4 0.7 45 13 4,5 3,4 B00104040500 M 5 0.8 50 16 6,0 4,9 B00104040600 M 6 1 56 19 6,0 4,9 B00104040700 M 7 1 56 19 6,0 4,9 B00104040800 M 8 1.25 63 22 6,0 4,9 B00104040900 M 9 1.25 63 22 7,0 5,5 B00104041000 M 10 1.5 70 24 7,0 5,5 B00104041200 M 12 1.75 75 29 9,0 7,0 B00104041400 M 14 2 80 30 11,0 9,0 B00104041600 M 16 2 80 32 12,0 9,0 B00104041800 M 18 2.5 95 40 14,0 11,0 B00104042000 M 20 2.5 95 34 16,0 12,0 B00104042200 M 22 2.5 100 34 18,0 14,5 B00104042400 M 24 3 110 38 18,0 14,5 B00104042600 M26 3 110 38 20 16 B00104042700 M27 3 110 38 20 16,0 B00104042800 M28 3 110 38 20 16 B00104043000 M 30 3.5 125 45 22,0 18,0 B00104043300 M 33 3.5 125 50 25,0 20,0 B00104043600 M 36 4 150 56 28,0 22,0 B00104043900 M39 4 150 60 32 24 B00104044200 M42 4.5 150 60 32 24 B00104044500 M45 4.5 160 65 36 29 B00104044800 M48 5 180 70 36 29 B00104045200 M52 5 180 70 40 32 B00104045600 M56 5.5 200 70 40 35 Bu İlan ENTEGRA Entegrasyon Sistemleri ile Listelenmiştir
